Products

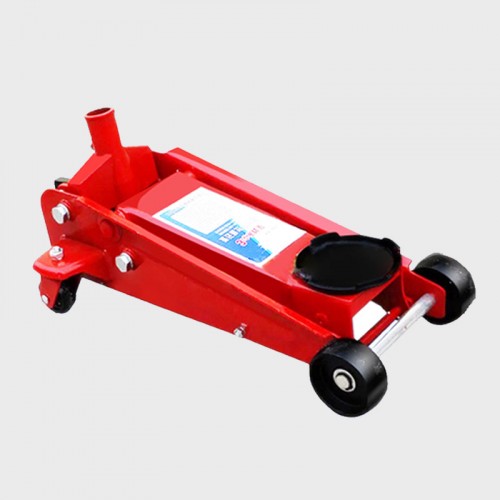

Brief introduction:
load capacity is 2ton, 3ton packing: plastic bag or wooden box
specifications:
1.loading capacity:2.0T.
2.The maximum height of 320 (mm).
3.The minimum height of 135 (mm).
4.Weight:6.0KG.
5.Packing:with color box.
| MODEL |
CAPACITY (ton) |
MIN.H(mm) | MAX.H(mm) | PACKING SIZE(mm) | N.W.(kg) |
20'CONTAINER (pcs) |
| QK2-300 | 2 | 130 | 300 | 435*195*140 | 5.5 | 2520 |
| QK2-320 | 2 | 130 | 320 | 435*195*140 | 6.5 | 2520 |
| QK2-330 | 2 | 130 | 330 | 450*210*140 | 7.5 | 2300 |
| QK3-460 | 3 | 140 | 460 | 625*375*190 | 22 | 680 |
| QK3-470 | 3 | 140 | 470 | 720*375*180 | 30 | 617 |
| QK3-490 | 3 | 140 | 490 | 725*390*200 | 38 | 530 |
| QK3-500 | 3 | 140 | 500 | 690*385*200 | 26 | 500 |
